SPECIFICATIONS

App Name: Tuya, Smart Life

App Type: Free App, Support Android and IOS

Battery Included?: Yes

Battery Type: Coin Battery CR2032

Brand Name: LoraTap

Certification: RoHS,CE,ce,ROHS,CE, RED, EMC, RoHS

Current: 1A

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Factory Quality: ISO9001:2015 factory

Features: WiFi Garage Door Controller

High-concerned chemical: None

Input Voltage: DC USB 5V / DC12-24V

Is Smart Device: Yes

Item Type: SWITCHES

Material: Plastic

Model Number: GDC311WQ1-V2

Need a Hub: No

Origin: Mainland China

Output: Impulse Dry Contact Signal

Plastic Material: Fireproof ABS

Smart home platform: Tuya

Support: Hands-free Voice Control

Switch Type: APP Control

Voice Control: Google Home, Amazon Alexa

Warranty: 1 years

Wireless Protocol: 2.4GHz Wi-Fi(not support 5GHz Wi-Fi)

application: DIY

Note before Order, please test compatibility

- Please check if your garage controller is compatible with our module. - You can use the pliers to short-circuit the wall button terminal on the opener. If the garage door opens or closes, it can work with our smart controller. - This product has two power supply methods, the first is USB DC 5V power supply mode, you only need to connect to the USB adapter to work, The second is DC 12-24V power supply mode, please pay attention! When wiring, you need to distinguish between positive and negative poles, and connecting the wrong wire will cause product damage! The two power supply methods only need to be connected to one.

FAQ

• It is not important to the brand of the engine. This smart device is connected in parallel with the existing wall push button. • The output of this device is impulse dry contact signal. The relay is isolated from the internal circuit of the module. You can hang parallel to the button with any voltage. This gives a short pulse(not a constant pulse) and simulates the pressing button. • It can work for opening a sliding gate if you have a one gang wall push button for the gate. This smart device is connected in parallel with the wall push button. • You don’t need to buy a Hub for this device, this device connects to the WiFi of the House. But a strong WiFi signal is a must for this device, try to connect your phone to WiFi next to the engine, if it works the device will work otherwise look for a WiFi signal repeater. • This is a WiFi only device, it doesn’t work with any RF 433Mhz or RF 868Mhz remote. • This device is not compatible with HomeKit. But you can add Tap-to-Run Scene to Siri Shortcut in smart life app.

Specification

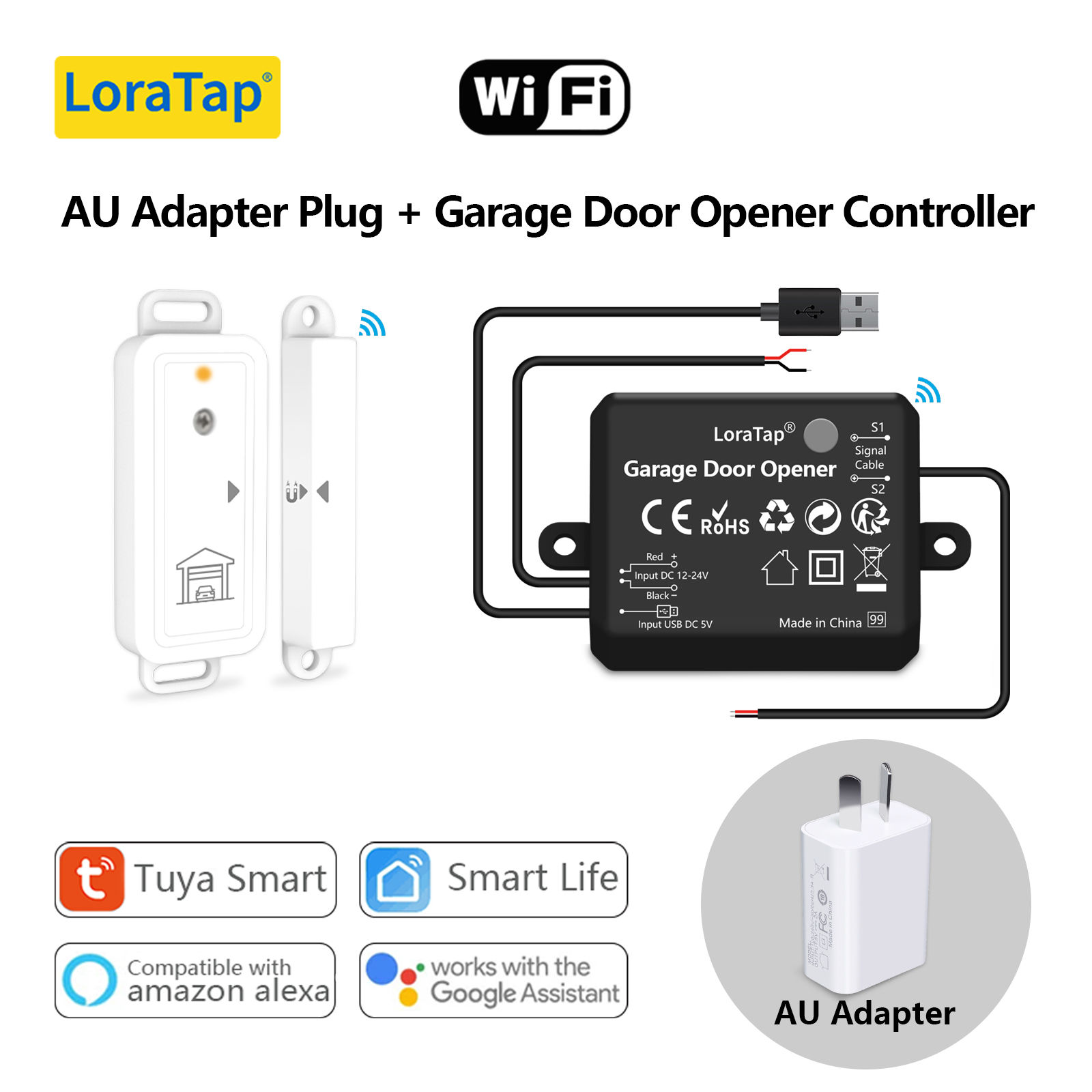

Input Voltage: DC USB 5V / DC 12-24V Control Module Wireless Protocol: Wi-Fi 2.4GHz & LoraTap RF 433Mhz Wireless Sensor Protocol: LoraTap RF 433Mhz Wireless Sensor Control Distance: 15 meters Battery Type: 1 * CR2032 Coin Battery Color: Black Plastic Material: Fireproof ABS Patented Design: Yes Certification: CE, EMC, RED, RoHS Produced by ISO9001 Factory: Yes

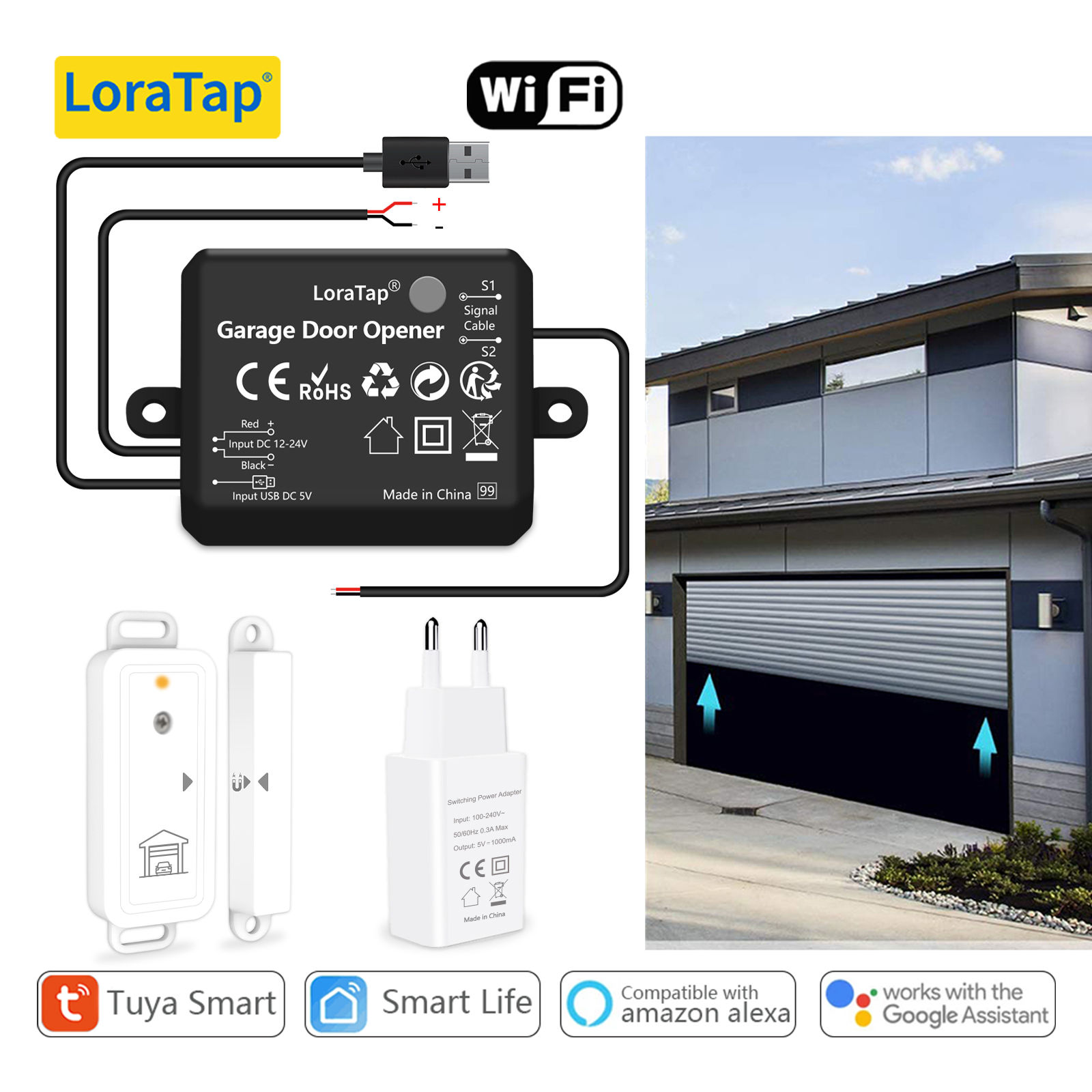

New Generation Garage door opener controller characteristics:

1、More Safe and More Convenient Power Supply，DC 12-24V or 5V USB powered，The new version of the garage door switch control uses a new power supply method: (1) DC 12-24V, you can connect to your garage door motor through wires, convenient for the equipment to power supply. (2) 5V USB power supply, using USB cable power supply, more safe and convenient, do not worry about equipment overload caused by burning. 2、Bluetooth pairing function，In order to ensure the stable connection of the device, we have added the Bluetooth configuration method to increase the stability of the device connection. 3、Smart your garage Door by phone，Remote and Voice Control, just tapping the Tuya or Smart Life App from anywhere or speaking to your Alexa, Google Assistant . Enable the door open or close even when you are not at the site. 4、Voice Control by Google Home, or Alexa Assistant device. 5、Device security note，Be alerted from App with different notification modes such as garage door open/ close status, overtime notification and overnight notification to remind you close the garage door. 6、Schedule, countdown function, you can set the garage door in the app to open or close at a specified time, countdown to open or close.

More Safe and More Convenient Power Supply

- This product has two power supply methods, the first is USB charger mode, If your power supply is 100-250VAC, please charge it this way. Our charging head is a Eu
