SPECIFICATIONS

App Name: Tuya, Smart Life

App Type: Free App, Support Android and IOS

Brand Name: NONE

Certification: CE,CE, RED, EMC, RoHS

Choice: yes

Color: White

Factory Quality: ISO9001:2015 factory

High-concerned chemical: None

Origin: Mainland China

Plastic Material: Fireproof ABS

Plug Type: EU Plug

Smart home platform: alexa,Tuya,Google Assistant

Support: Hands-free Voice Control

Voice Control: Google Assistant, Amazon Alexa

Wireless Protocol: 2.4GHz Wi-Fi(not support 5GHz Wi-Fi)

Note before Order, please test compatibility

- Please check if your garage controller is compatible with our module. - You can use the pliers to short-circuit the wall button terminal on the opener. If the garage door opens or closes, it can work with our smart controller.

FAQ

• It is not important to the brand of the engine. This smart device is connected in parallel with the existing wall push button. • The output of this device is impulse dry contact signal. The relay is isolated from the internal circuit of the module. You can hang parallel to the button with any voltage. This gives a short pulse(not a constant pulse) and simulates the pressing button. • It can work for opening a sliding gate if you have a one gang wall push button for the gate. This smart device is connected in parallel with the wall push button. • You don’t need to buy a Hub for this device, this device connects to the WiFi of the House. But a strong WiFi signal is a must for this device, try to connect your phone to WiFi next to the engine, if it works the device will work otherwise look for a WiFi signal repeater. • This is a WiFi only device, it doesn’t work with any RF 433Mhz or RF 868Mhz remote. • This device is not compatible with HomeKit. But you can add Tap-to-Run Scene to Siri Shortcut in smart life app. • You can choose EU Standard Plug option if you are in Brazil.

Specification

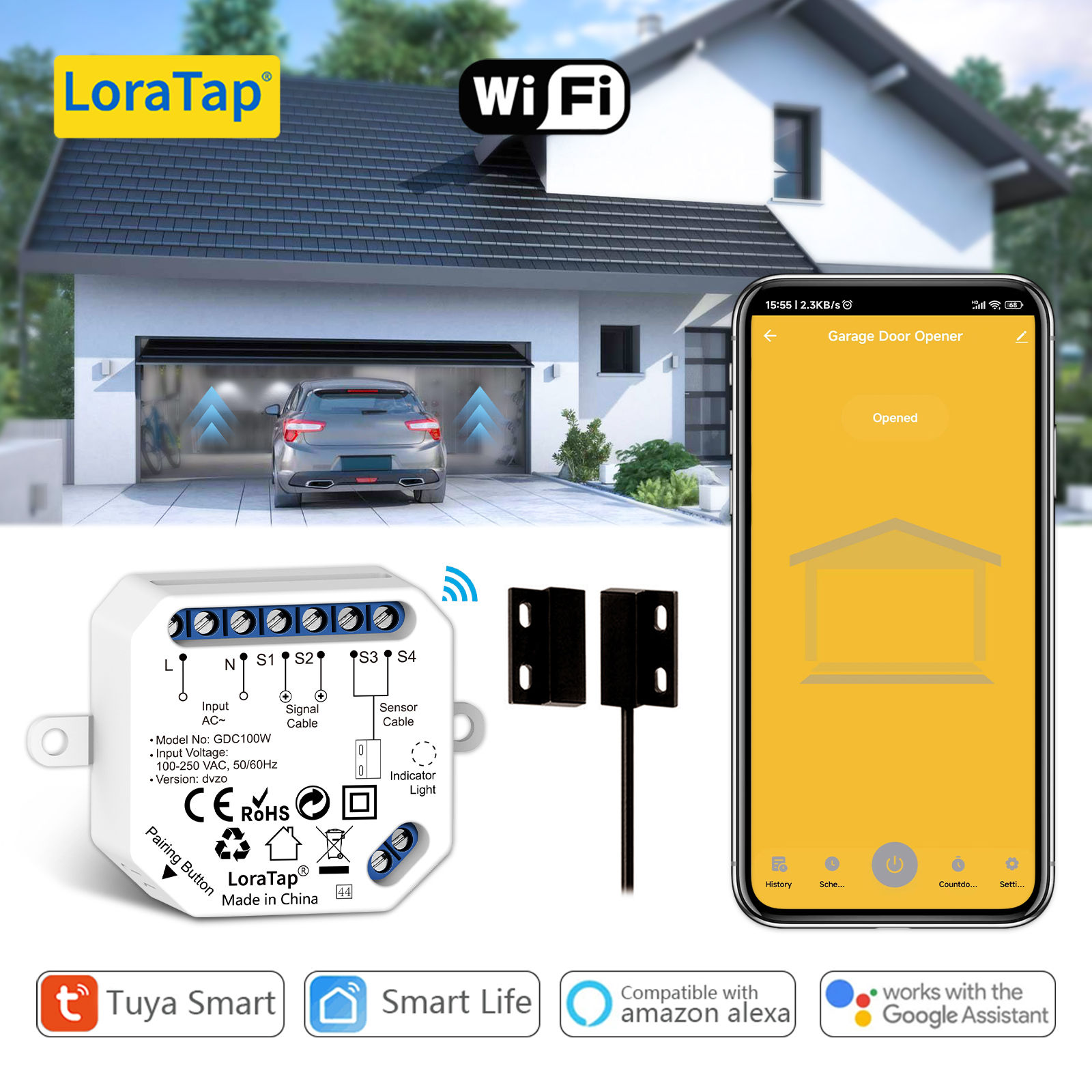

Voltage: 100-250VAC, 50/60Hz sensor action distance: below 30mm length of the sensor cable: 5 meters Wireless Protocol: Wi-Fi 2.4 Ghz( don't support 5Ghz Wifi band) APP Name: Smart Life, Tuya Voice Conrol: Google Assistant, Amazon Echo Alexa Dimensions:48mm*47mm*22mm Colour: White Plastic Material: Fireproof ABS Certification: CE, RED, EMC, RoHS Produced by ISO9001:2015 factory: Yes Patented Product: Yes

Features

1. Smart your garage Door by phone，Remote and Voice Control, just tapping the Tuya or Smart Life App from anywhere or speaking to your Alexa, Google Assistant . Enable the door open or close even when you are not at the site 2. Bluetooth pairing function，In order to ensure the stable connection of the device, we have added the Bluetooth configuration method to increase the stability of the device connection. 3. Voice Control by Google Assistant, or Alexa Assistant device 4. Device security note，Be alerted from App with different notification modes such as garage door open/ close status, overtime notification and overnight notification to remind you close the garage door. 5. You can set a timer to open or close the garage door at a set time. 6. The App interface provides real-time feedback on the status of the garage door to confirm safety. 7. The opening or closing of the garage door will be automatically recorded, and you can view the history anytime in the app.

Different standard plugs

Please select the corresponding standard product according to your needs.

User installation display
