SPECIFICATIONS

App Name: Tuya Smart ,Smart Life

Brand Name: MatSee Plus

Certification: CE,ce,ROHS

Choice: yes

Connect: Dry Contact

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: None

Input Voltage: AC 110-240V 50/60Hz

Is Smart Device: Yes

Item Type: SWITCHES

Material: Plastic,ABS,PC

Origin: Mainland China

Output: NO

Supported OS: Android, IOS

Switch Type: Remote Control

Wireless Type: WiFi 2.4GHz, not support 5Ghz

semi_Choice: yes

Note Before Order

Please check if your sliding door or garage door controller is compatible with our module.You can use the pliers to short-circuit the wall button terminal on the opener. If the sliding door opens or closes, it can work with our smart controller.

Notice: 1.Please make sure that there is an external switch with your sliding door/garage door ,otherwise the switch module cannot be installed.If the sliding door can be controlled by external switch and controller ,you can also install the module. 2.The sliding door module cannot be paused in APP. 3.Please calibrate the sliding door module at first.Choose a suitable time for opening/closing.

Remote Control

You can remotely open the sliding gate or Garage door via the Tuya App.

Timing Function

The sliding door / garage door can run automatically according to the schedule you set.

Settings

Share Device With Your Family

After the family member registering a Tuya account, You can authorize device control to family members by "share device" in the APP.

Real-time Monitor

You can check the status of the sliding door at any time through the app.

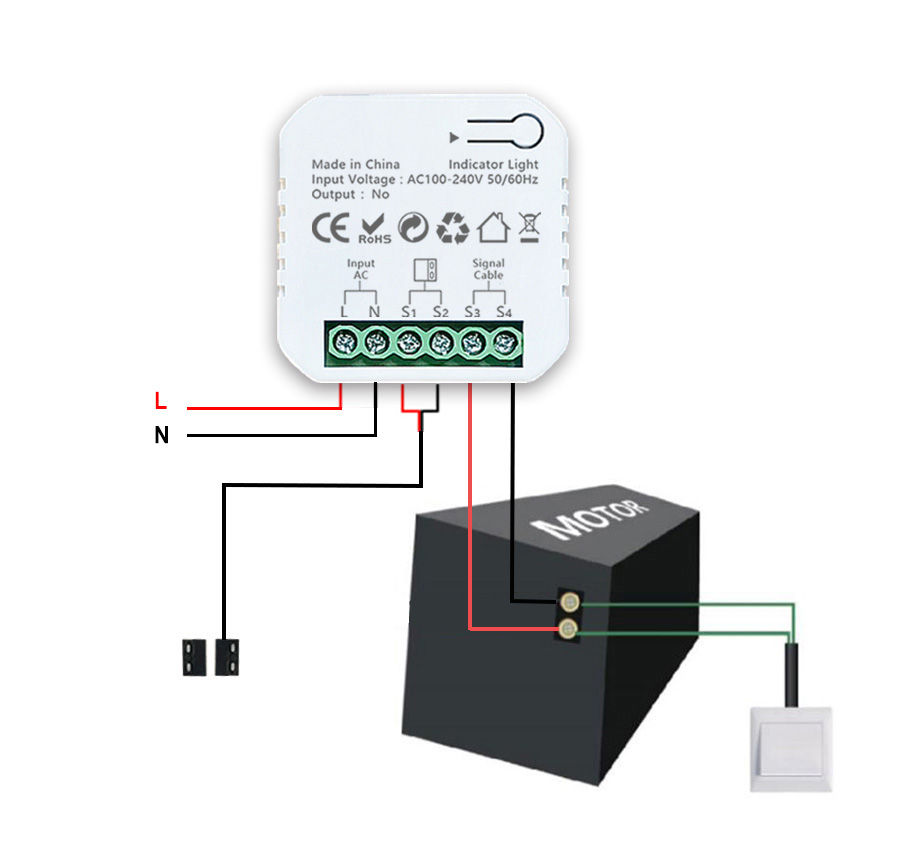

Wiring Diagram

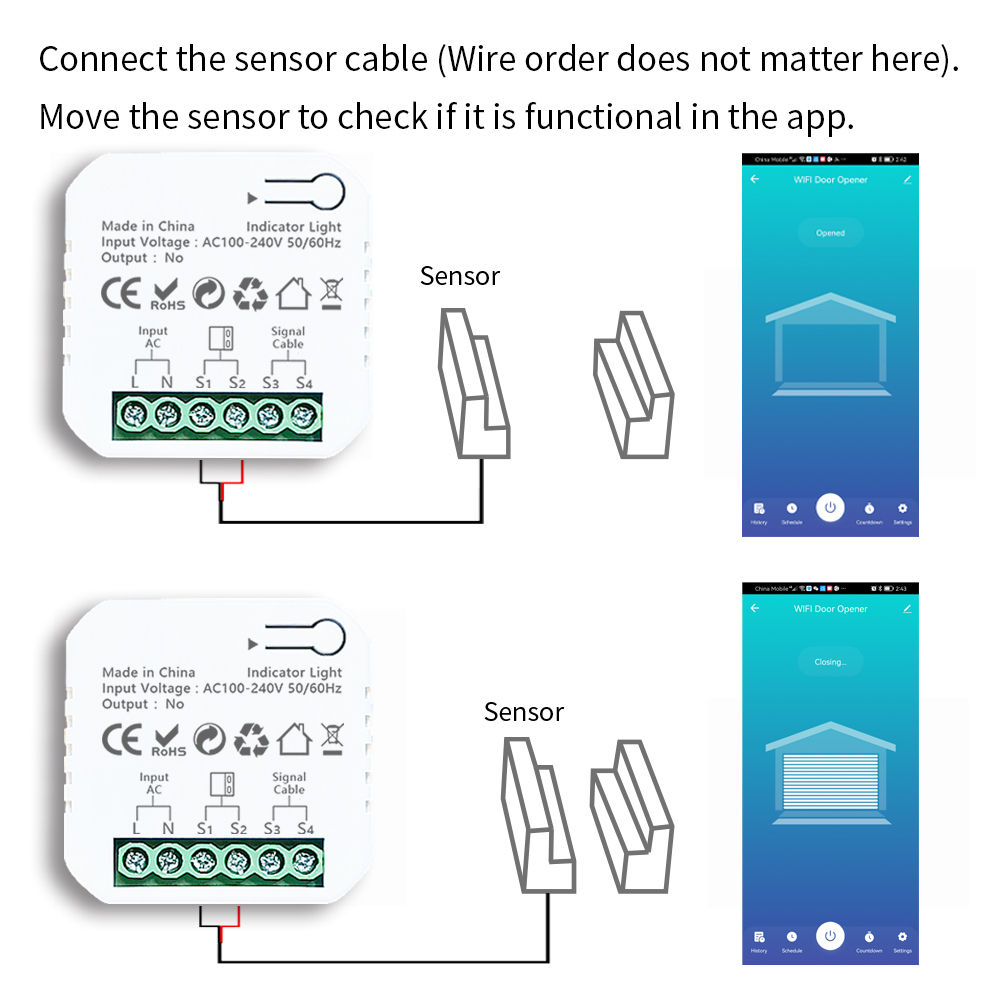

Wired door sensor mount

Find a proper position on the sliding door to mount the sensor(You can use the included double-sided adhesive tapes, screws or brackets for sensor fixation). Please make sure the distance between the two sensors is less than 30mm when the sliding door is closed, and the two sensors are well separated when the sliding door is open.
