SPECIFICATIONS

Brand Name: Excellux

Camera Equipped: No

Certification: CE,RoHS

Choice: yes

Communication method: Zigbee

Compatibility: others

High-concerned chemical: None

Model Number: 24G RADAR OCCUPANCY SENSOR & LUX TH | PIR SENSOR

Origin: Mainland China

State of Assembly: Ready-to-Go

Use: others

Wireless Function: Yes

*Compatible zigbee hub is required ,.they cannot work alone without related gateway.

【What is the difference between Z2M and Tuya Zigbee version?】

*For Z2MQTT Version: Need work with zigbee2mqtt on home assistant via related gateway.Not support for tuya nor smart life gateway.*Tuya Zigbee Version:Need work with tuya zigbee gateway,Also compatible with zigbee2mqtt on home assistant via related gateway.Not support for ZHA(zigbee home automation )

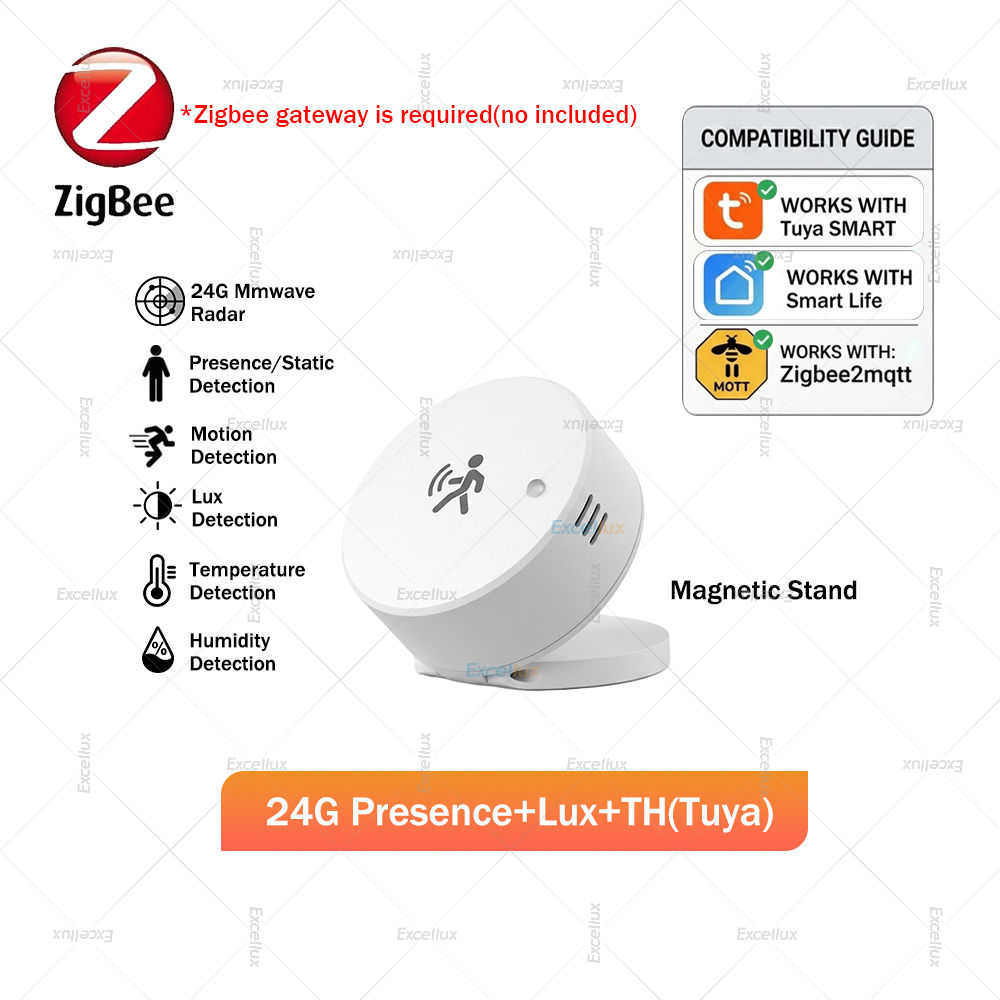

Product name :Zigbee Occupancy Sensor

Battery: CR2450 Button Battery(Included)

Wireless: Zigbee 3.0Radar: 24GHzWorking Voltage: DC 3.0VStandby current: <60uADetection angle：≥ 80°

Detection distance ：≤ 5m

24G Presence Sensor Function Description

Zigbee Occupancy Sensor means zigbee human presence sensor,it can detect motion and static status.

• Click "SET" " to turn on/off the LED indicator light, which will stay on once to indicate it is turned on, Flashing 3 times, closing the meter• The default duration for someone to hold it is 30 seconds, which can be set on the app• The 24GHz radar version supports static detection and motion detection• There is a detection version available at 24GHz, with motion/static sensitivity- The higher the value, the more sensitive it is If the default parameters trigger false alarms, please reduce the motion detection sen sitivity. If the static state cannot be maintained, you can increase the static detection sensitivity and Set. the 'Presence Keep Time' time to a Longer value.

•Create smart scene and linkage with other zigbee devices
