SPECIFICATIONS

Brand Name: wenzhi

Certification: CE,RoHS

Choice: yes

Detection Angle: 120°(5.8G)/100°(24G)

Detection Range: 10m

High-concerned chemical: None

Model Number: X85

Origin: Mainland China

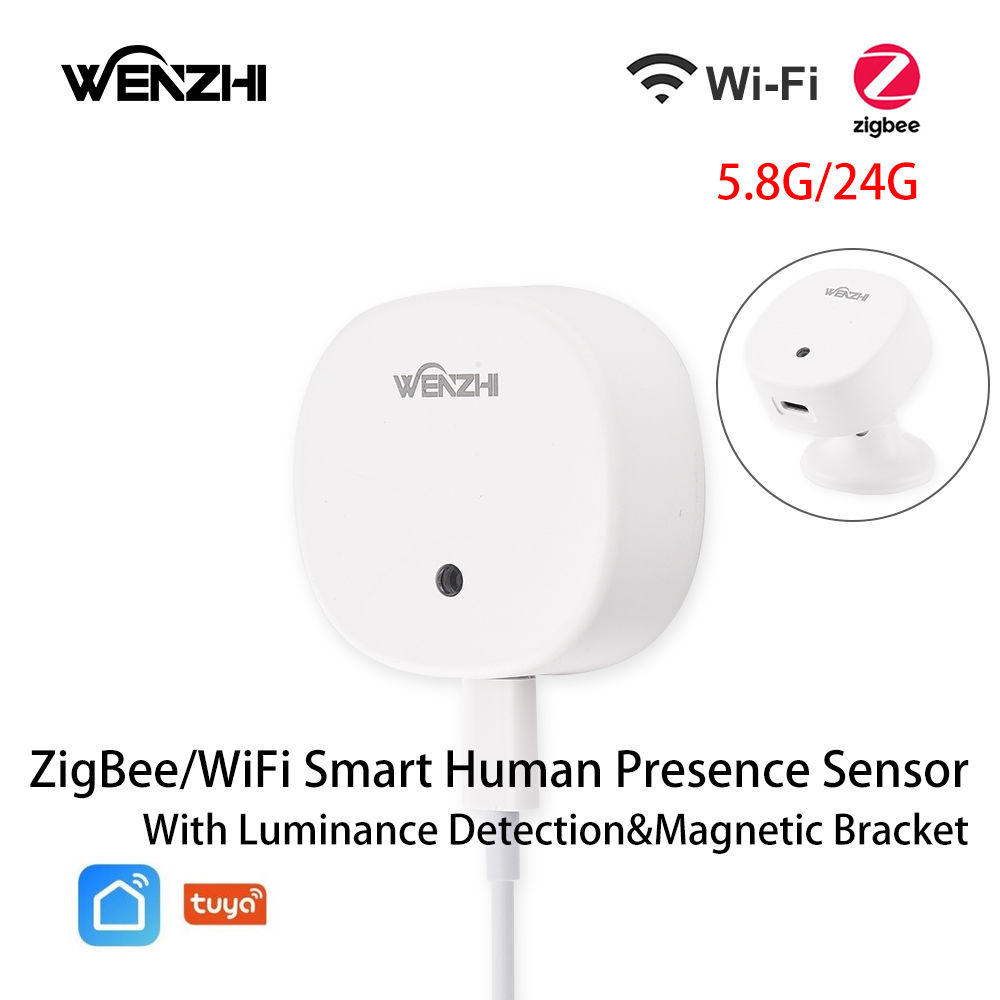

ZigBee/WiFi MmWave Human Presence Sensor Radar Movement Body Motion Detection With illuminance Tuya Smart Life Home Assistant

Main Features:

1.Functional Smart Human Presence Sensor

Featured as human presence,human static,human micro motion and human movement motion detection to detect the presence or absence of people in the area,even to detect the static state such as personnel sleeping accurately with mmWave Radar Detection featured.

2. 5.8G and 24G radars are optional.

Newly upgraded 24G radar with faster response speed. And the 24G version supports setting sensitivity based on distance zones or turning off/on the detection of corresponding distance zones. 5.8G has simpler usage settings. 5.8G is sufficient for daily use. 24G is more suitable for use in relatively complex scenarios.

3. Perceived Light Intensity for Smart&Scene Linkage

Illuminance monitor in Tuya Smart APP enables its smart feature as smart scene linkage with other smart devices,especially your house lights to ON/OFF automatically as the brightness changes;Besides,you can intelligently linkage the sensor to other smart home devices for home automation.

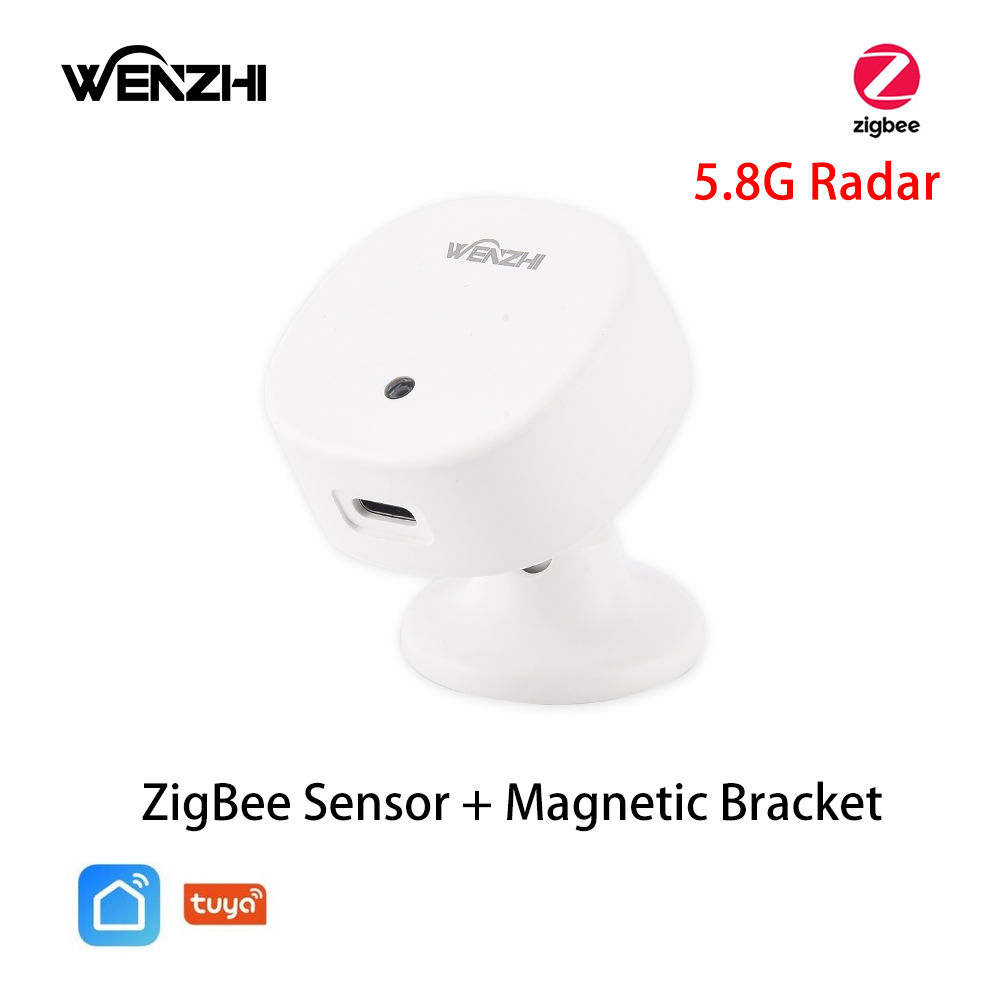

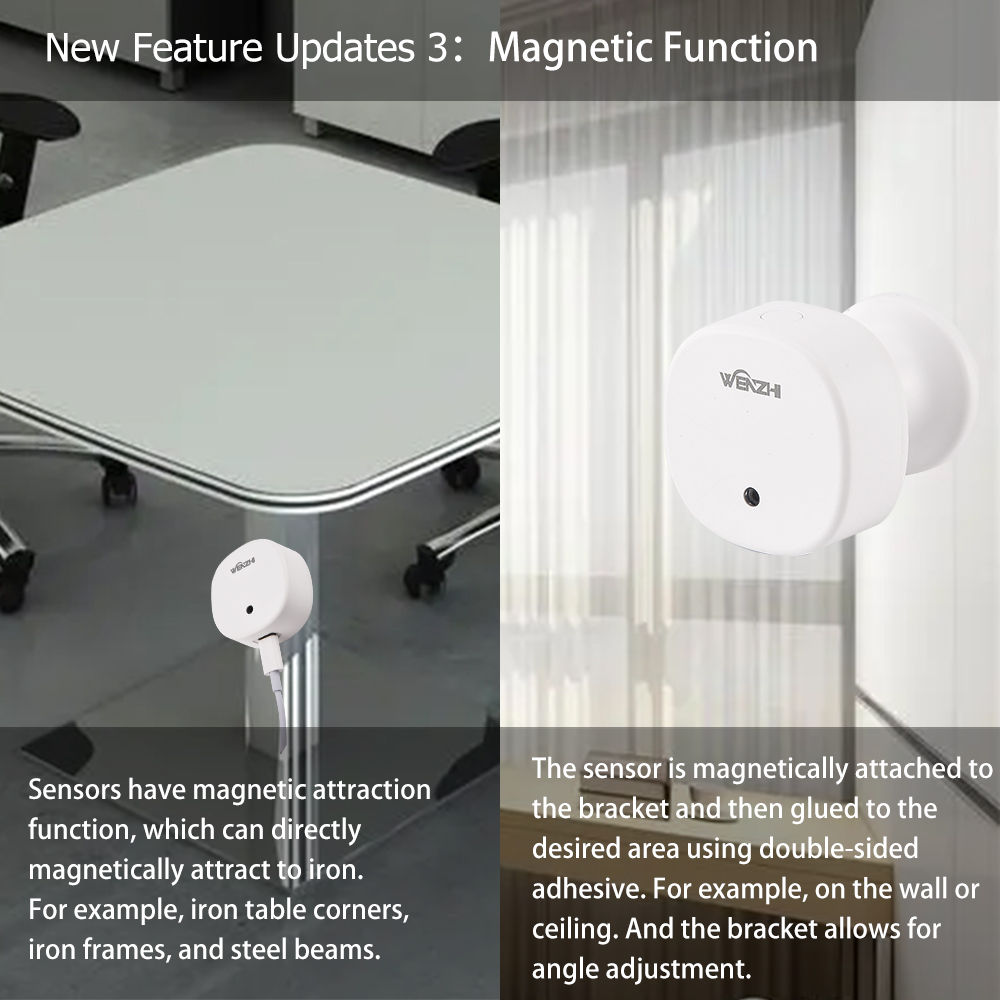

4.Comes With a Multi Angle Magnetic Bracket.

Sensors have magnetic attraction function, which can directly magnetically attract to iron. For example, iron table corners, iron frames, and steel beams.You can also use double-sided tape to directly stick it to the place where you need to install. The sensor is magnetically attached to the bracket and then glued to the desired area using double-sided adhesive. For example, on the wall or ceiling. And the bracket allows for angle adjustment. （Note: The back of the sensor has magnetism, and there is metal on the bracket. Therefore, achieving magnetic attraction function.）

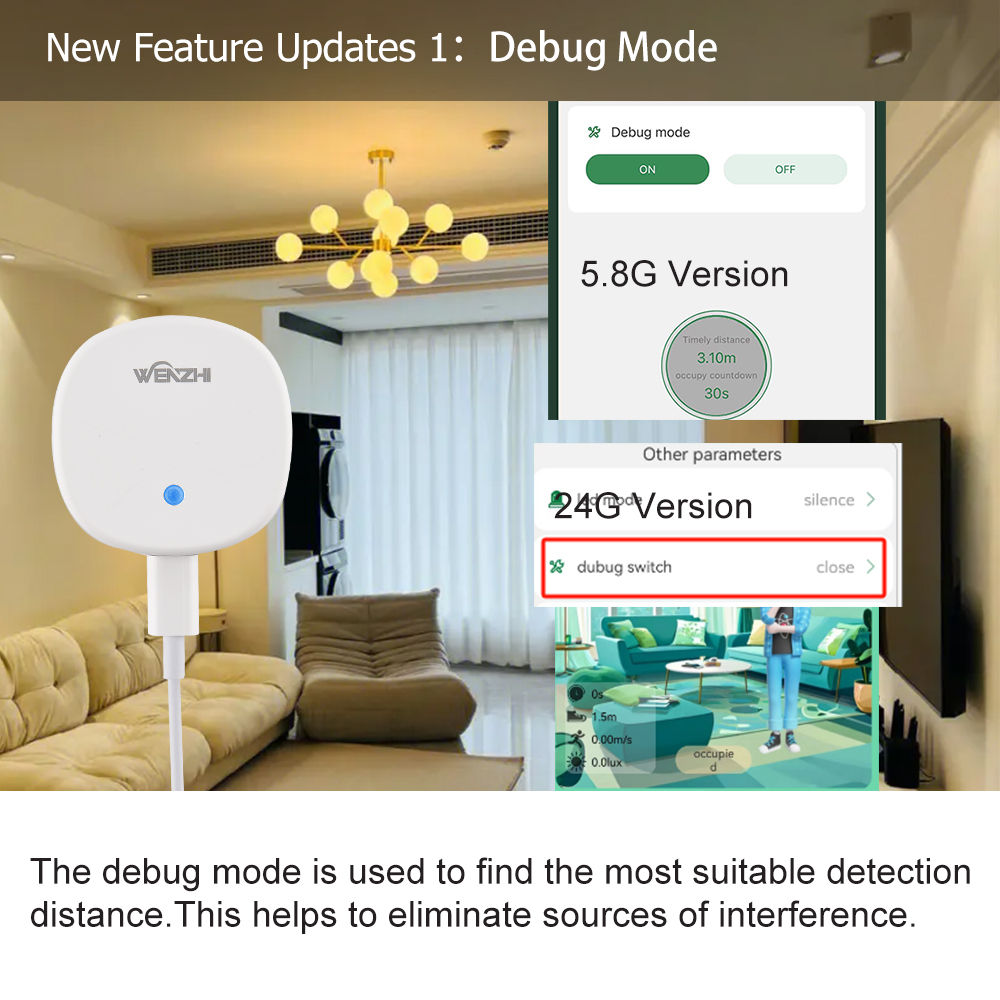

5.Newly updated debug mode.

The debug mode is used to find the most suitable detection distance.This helps to eliminate sources of interference.

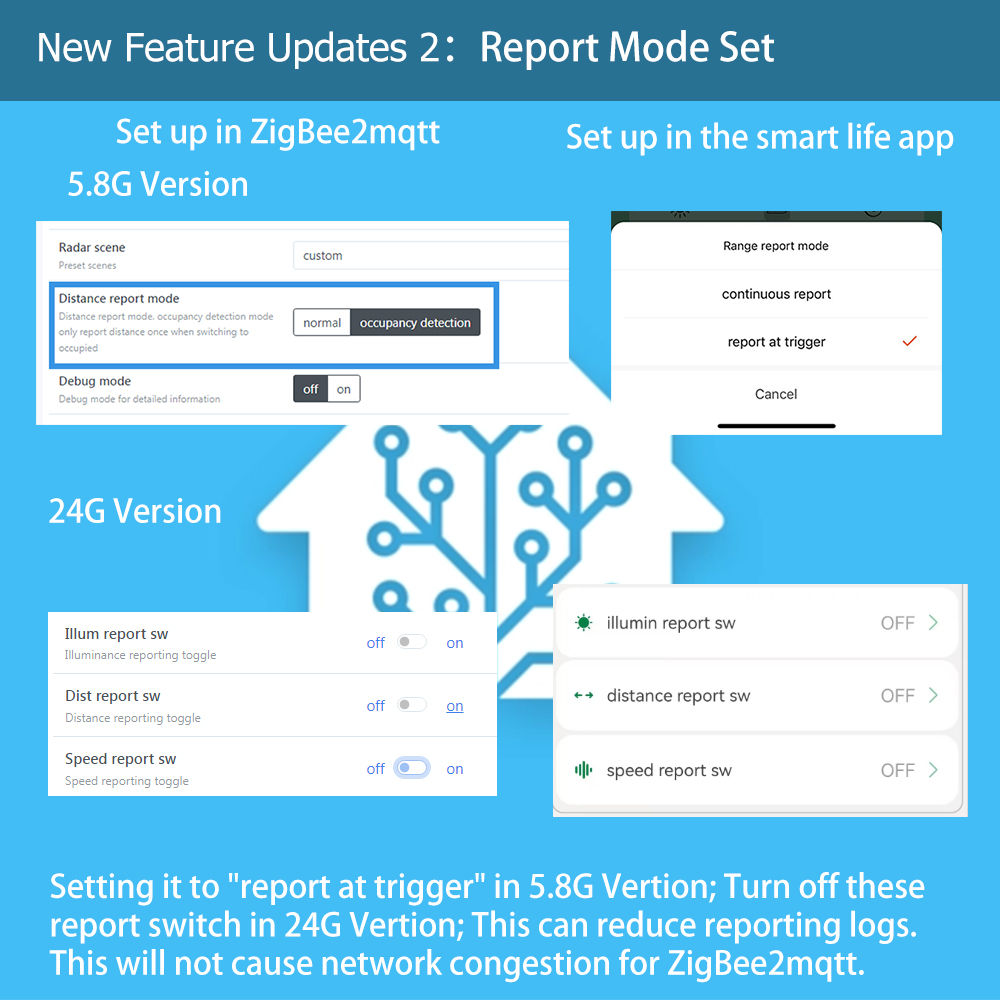

6.Newly updated Range Report Mode settings.

In 5.8G version: Setting it to "report at trigger" can reduce reporting logs. In 24G version:You can freely turn on or off functions such as brightness detection, distance reporting, speed reporting, etc. This helps to control the amount of data reported. This will not cause network congestion for ZigBee2mqtt.Compared to other sensors present in the human body, it may be more friendly to the ZigBee network. (Note: Overall, the data volume of 5.8G Version will be even smaller.)

7. ZigBee Hub as Control Center

Tuya ZigBee gateway is required for this ZigBee human presence sensor,performing as the center bridge for all Tuya ZigBee smart devices with extremely stable signal and a really good necessity for whole-house intelligence.(note:Tuya ZigBee hub is highly recommended for its wider compatibility than other hubs) If you need to use ZigBee2mqtt in home assistant. As this is a brand new device, if you want to add it directly to ZigBee2qmtt, please download the JS file from the following link. https://github.com/wzwenzhi/Wenzhi-ZigBee2mqtt

Specifications:

Network: ZigBee / Wifi. Radar: 5.8G/24G Input: USB Type-C DC 5V 1A. Working temperature: -10℃~+40℃ Sensitivity: 10-100%(default 80%) 5.8G Detection Range: 1-10m(Default 6m) 24G Detection Range: 1.2-8.4m(Default 6m) Illuminance Sensor: 0-9999.9 LUX(relative value). 5.8G Entry Filter Time:0.05S-0.5S(Default 0.1S) 5.8G Departure Delay: 5S-120Min(Default 5S). 24G Departure Delay: 5S--1004S(Default 30S). Beam Angle: 120*120°(5.8G) / 100*100°(24G) Sensor Size: 48x48x20mm / 1.89*1.89*0.79in Bracket Size: φ40mm*H36mm / φ1.57in*1.42in
